Basement Vertical Beam

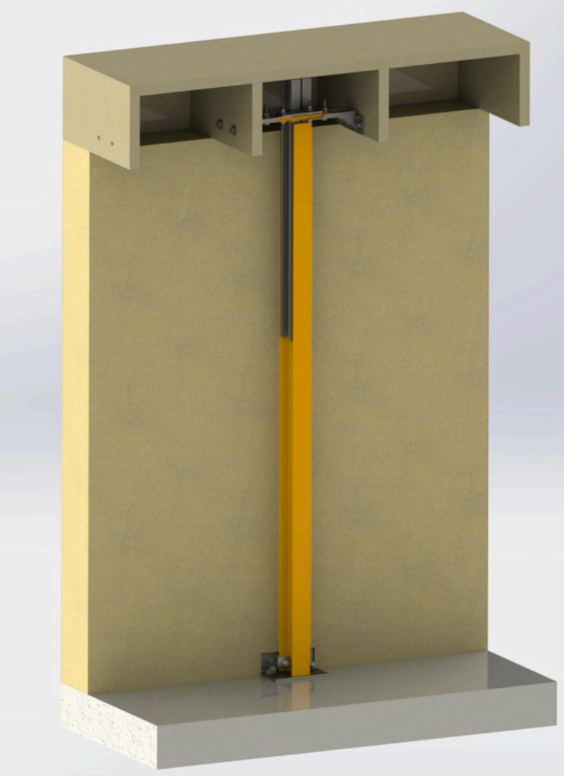

The Basement Vertical Beam (BVB005) is a high-performance structural reinforcement solution designed to stabilize and support basement walls constructed from concrete or CMU (Concrete Masonry Unit). Developed through iterative design improvements, BVB005 represents the latest version in the BVB series, incorporating enhanced strength and optimized installation performance.

Key Features & Benefits

• Reliable Wall Stabilization – Designed to reinforce basement walls experiencing bowing or lateral pressure, helping restore structural integrity and prevent further movement.
• Engineered Performance – Earlier BVB versions underwent Finite Element Analysis (FEA), validating stress distribution and load performance across a full assembly. While results may vary slightly with updated configurations, BVB005 builds upon proven engineering foundations.
• Versatile Application – Suitable for installation on both poured concrete and CMU walls, making it adaptable across a wide range of residential and commercial foundation systems.
• Optimized System Design – Spacing between beams is determined using engineering specifications to ensure proper load distribution. Additional units can be added where required to meet structural compliance.

Installation Guidelines

• Wall Condition Requirement – BVB005 is intended for walls with bowing of 2 inches or less. Walls exceeding this limit must be corrected prior to installation.
• Maximum Wall Height – Suitable for basement walls up to 9 feet in height.
• Placement & Spacing – Beam spacing must follow the recommended guidelines outlined in the BVB specifications table. Additional beams are required if spacing from wall corners exceeds allowable limits.

Durability & Maintenance

To ensure long-term performance and durability:

• Protective Coating -The beam must be painted promptly after installation to prevent corrosion.
• Moisture Control – The surrounding structure—including floor joists, walls, and foundation elements—must be properly maintained to prevent excess moisture and exposure to corrosive agents.
• Foundation Care – Waterproofing and routine inspection are recommended to extend the lifespan of the entire system.
